Rigid-Flex PCB

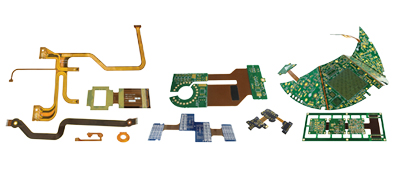

Rigid-Flex circuit boards are composed of a combination of rigid and flexible circuit boards that are permanently connected to one another.
The proper application of Rigid-Flex circuit boards offers optimum solutions for difficult, limited space conditions. This technology offers the possibility of a secure connection of device components with the assurance of polarity and contact stability, as well as a reduction in plug and connector components.
Additional advantages of Rigid-Flex circuit boards are dynamic and mechanical stability, the resulting 3-dimensional freedom of design, simplified installation, space savings, and maintenance of Cheap Tag Heuer Replica uniform electrical characteristics.
Use of Rigid-Flex circuit boards can reduce the total cost of the final product.
Rigid-Flex circuit boards give you unlimited freedom of packaging geometry while retaining the precision density and repeatability of printed circuits.
As a high reliability replacement for wire and wire harness assemblies, flex circuits provide a significant cost savings with no reduction in performance.
There are a variety of Tag Heuer Replica Watches terminations for flex circuits and we can provide all of these as standard manufacturing process.
Flex-rigid PCB Capabilities
| Layer | 2-24 |
| Material | DuPont (PI25UM), FR4 |
| Thickness (Finished Board) | 0.6 mm-5.0 mm |
| Max. Board Size | 457 mm*610 mm |
| Copper weight (finished) | 457mm*610mm |
| Copper Weight | 0.5 oz-2.0 oz |
| Surface Finish | Hot air solder leveling (HASL) Lead-free HASL: RoHS compliant Electroless nickel/immersion gold (ENIG): RoHS compliant |
| Min. Tracing/Spacing | 3 mil/3 mil |
| Min. diameter of drill | 8 mil |
| Min. annular ring | 4 mil |
| Soldermask color | Green, red, black, yellow, white, blue, green matt, black matt |
| Silkscreen legend color | White, black, yellow |
| Gold fingers | Yes |
| Stiffener | Yes, material FR4 or PI |
| Impedance control | Yes, tolerance +/-10% |
| HDI | Yes |
Check the Capabilities of Flex-rigid PCB, please Click here
